Hidden defect: Un-inspectable details

Problem: Data relating to bearing behaviour was required to plan maintenance work on multiple motorway links.

Solution: JF SME Testing set up monitoring at four separate locations on the Midlands links in order to gather information about the actual behaviour of bearings and supporting structures, facilitating maintenance planning.

Hidden defect: Bearing seizure

Problem: Data was required to measure long term structural articulation.

Solution: JF SME Testing instrumented a ten span section of the bridge, enabling long term monitoring. The piers were slender and there was no evidence of movement in the steel bearings. In order to record any movement between the piers, monitoring included displacement between them so that any overall sway could be detected.

Hidden defect: Elastomeric degradation

Problem: Measurement of deformations in elastomeric bearings was required.

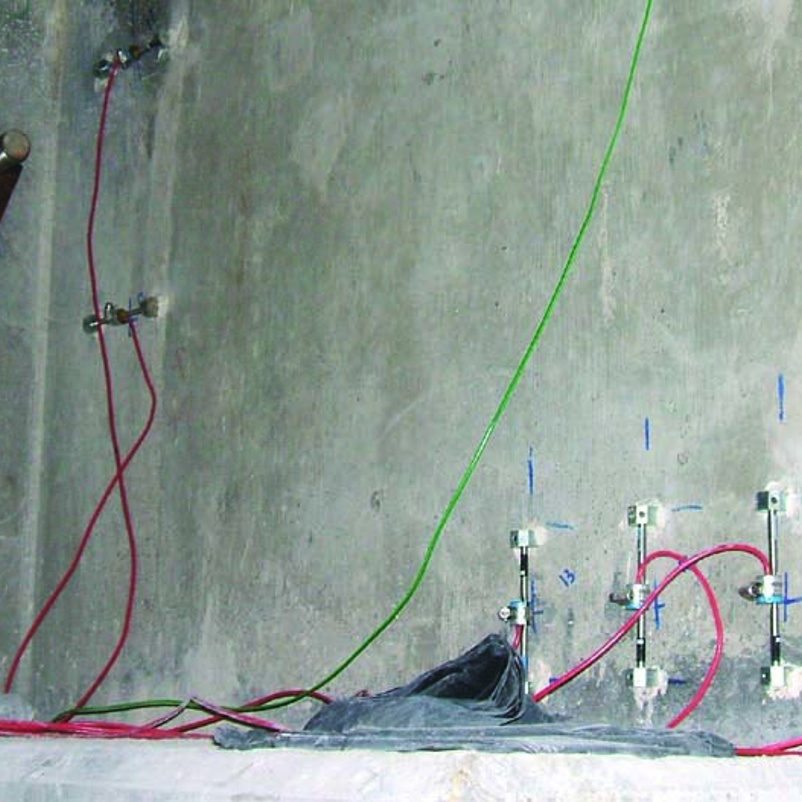

Solution: JF SME Testing instrumented elastomeric bearings in order to measure the deformations in three dimensions under known traffic loading. This information was then compared with the design parameters.

Hidden defect: Setting out errors

Problem: During the 1990’s a bearing replacement was completed without full consideration of deck expansion between removal and replacement operations, resulting in a misaligned bearing that was at risk of ‘falling off’ under extreme conditions.

Solution: JF SME Testing installed instrumentation and a live camera feed to accurately measure movement within the bearing prior to its replacement.
